MHB-XD |
OHB |
|
|

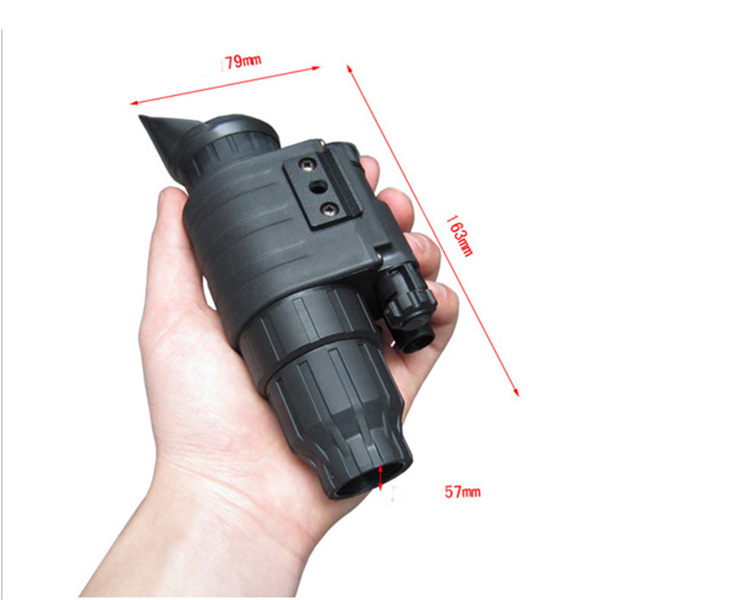

 | Optical characteristics | | magnifcation:x | 1x | | Objective Lens | 20mm | | Lens system | F27/1.35 | | Field of View,° | 36 | | Field of View, m@100m | 65.5 | | Min. focusing distance, m | 1 | | Eye Relief, mm | 12 | | Diopter adjustment, dptr. | -4/+4 | | Resolution, lines per mm | 42 (FOV: center) | | Built-in IR-illuminator | | IR Wavelenght, nm | 805 | | Equivalent IR Power, mW | 30 | | Power Supply | | | Power Supply, V | 3v | | Battery type | 1xCR123 | | Physical & operational characteristics | | Tripod Mount, inch | 1/4 | | Accessory Mount Rale Type | Weaver | | Operating Temperature,°C | -20°to+40° | | IP standard of water-resistance | IPX6 | | Dimensions, mm | 163x79x57mm | | Weight (without batteries), kg | 360g + 200g(head mount) | | Head Mount | included |


|
